Batteryless E-Paper Shows and Power Harvesting Strategies

As expertise advances, varied power harvesting strategies have emerged, resulting in a brand new period of batteryless sensors. The batteryless E-paper show proposed right here is one such design. (Digital paper, also referred to as digital ink (e-ink) or clever paper, is a show machine that mimics the looks of bizarre ink on paper.)

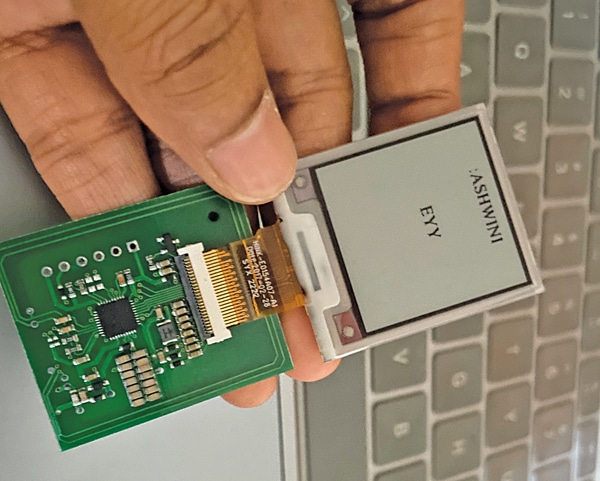

It may be stunning, however it’s not thought of rocket science or science fiction. Fig. 1 showcases the prototype of a batteryless e-paper show.

A lot of you’ll have already seen or used batteryless e-ink shows (E-paper shows).

Additionally Test: E-paper Clock

A number of corporations are already promoting them, a number of of which may be checked right here:

– Commercial –

1. https://www.waveshare.com/wiki/7.5inch_NFC-Powered_e-Paper

2. https://www.ynvisible.com/news-inspiration/ynvisible-e-paper-displays-nfc-energy-harvesting

3. https://www.good-display.com/product/423.html

– Commercial –

4. https://lummico.com/product/smarttag-batteryless-2-90

5. https://www.usocard.com/case-detail/id-32.html

6. https://github.com/GDSID/Hipoink

e-ink Show

e-ink shows are a singular form of show the place when you replace the display screen, the displayed content material stays even in the event you take away the facility. Energy is just wanted when updating, and the required quantity is minimal, which may be simply provided by harvesting RF, photo voltaic, and varied different types of power within the neighborhood.

Additionally Learn: What Is E-Paper Show? Benefits and Disadvantages

Most batteryless shows in the marketplace in the present day make the most of near-field communication (NFC). They function by harvesting power from NFC. To replace the small print on the show, one can merely use a cellphone with NFC or an NFC show author machine. The up to date display screen stays seen even when the show isn’t powered.

Such shows are extremely helpful for batteryless sensor nodes, low-power wearable units, value tags in clothes shops and market stalls, and advertising show screens. They’ll additionally function sensible enterprise playing cards and ID playing cards, permitting for updates every time mandatory.

There are quite a few functions for these batteryless sensible shows. Right here, two variations of batteryless shows have been designed.

The primary model explains how NFC-based battery shows may be designed.

The second model caters to these with out entry to PCB SMD soldering and manufacturing processes. This model describes a Wi-Fi-based batteryless show that makes use of a wi-fi coil for energy throughout show updates. Right here solely the NFC-based batteryless show and Wi-Fi-based batteryless show might be delved into.

NFC-based Batteryless E-paper Show

If one needs to create batteryless show identification playing cards, enterprise playing cards, or tags with out intensive SMT meeting, a modular-based design strategy may be opted for. An NFC power harvesting-based show driver module suitable with e-ink shows may be bought. To embark on the NFC-based batteryless show, the elements listed in Desk 1 can be required.

Nevertheless, if one prefers designing their very own with PCB and SMT meeting, a reference design is accessible (https://github.com/GDSID/Hipoink).

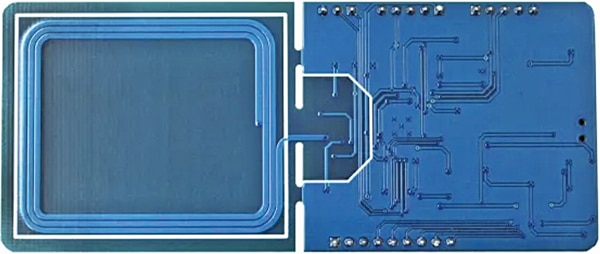

For such a prototype (NFC-based batteryless show tag), the “DENFC-M0 Power Harvesting” show driver and the GDEY0213B74 e-ink show have been utilized. Fig. 2 illustrates the power harvesting show driver module.

PS: Along with the elements listed in Desk 1, an Android cellphone and an app are additionally required to replace the show wirelessly with out utilizing a battery. The app and all different technical particulars may be obtained (https://buy-lcd.com/merchandise/e-paper-display-spi-module-denfc-m01-nfc-eink-display-board).

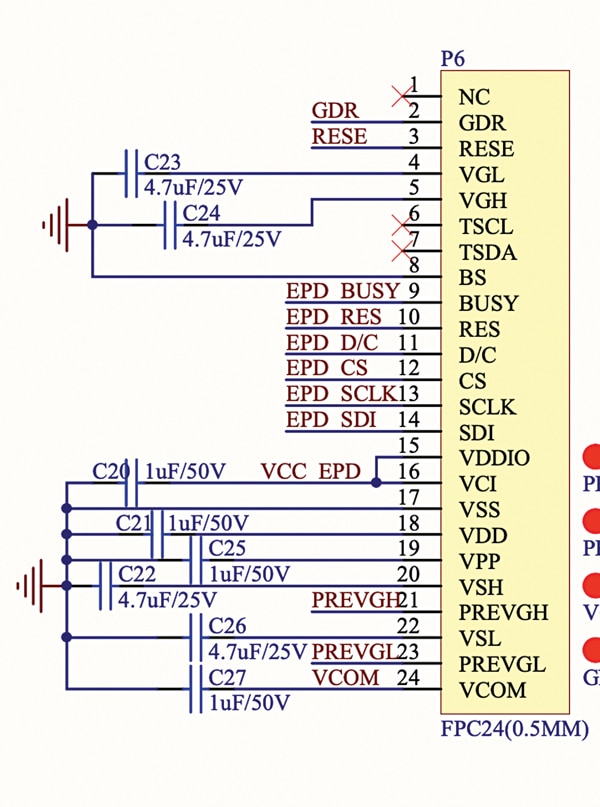

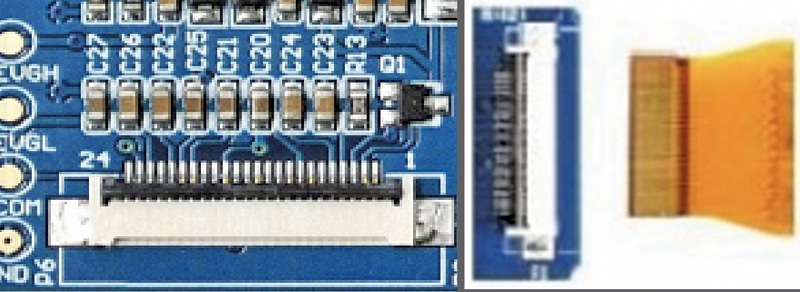

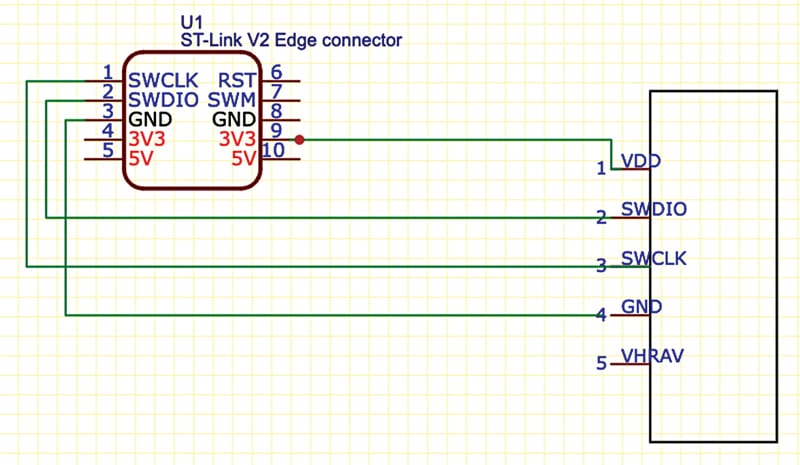

Earlier than connecting the elements, confer with Figs. 3, 4, and 5. First, join the NFC power harvesting GDEY0213B74 e-ink show driver module utilizing the FPC connector supplied on the DENFC-M0 power harvesting board. Now, join the ST emulator to the NFC show driver board. Fig. 3 reveals the FPC connector and reference to the show. Internally, the show pin connections are proven in Fig. 4, whereas Fig. 5 shows the reference to the ST hyperlink emulator.

The firmware may be uploaded to the driving force module utilizing Keil. The board helps SWD obtain mode. Obtain the Keil and firmware, after which place them within the root catalogue of the Keil software program. Choose the MCU as ARMCM0. Now, compile the firmware and add it to the board. Fig. 6 shows a screenshot of the Keil firmware.

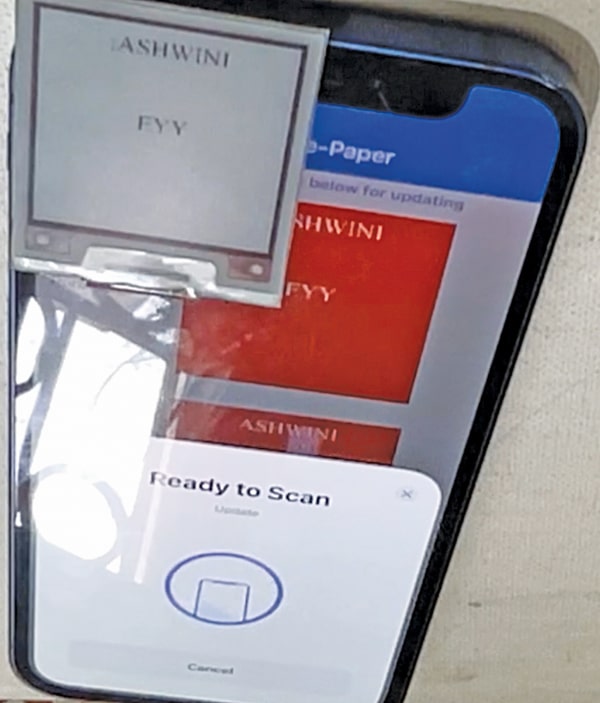

For testing, obtain the app supplied with the driving force module’s QR code and set up it in your cellphone. Place the NFC show driver on the NFC aspect of your cellphone and add the specified picture or textual content. After a number of seconds, the show will refresh and present the up to date display screen with the textual content and picture you simply uploaded. Fig. 7 illustrates an Android cellphone displaying the e-ink show.

Apparently, there is no such thing as a battery related to the show driver, but your entire show updates with none energy supply, making it batteryless. The NFC driver may be faraway from the cellphone, and the show will stay the identical even with out energy.

Moreover, the show may be indifferent from the driving force module and positioned wherever mandatory, equivalent to on an ID card, store value listing, or commercial show; it is going to stay purposeful for years without having any energy.

Wi-Fi-based Batteryless Show

To design a long-range wi-fi updatable and batteryless show, the Indusboard and a wi-fi powering coil can be utilized. As talked about earlier, e-ink shows require solely a small quantity of energy when updating, and the displayed screens stay unaltered even when energy is eliminated.

Due to this fact, the identical idea as the sooner design is employed, however as an alternative of NFC coil power harvesting, power is harvested from the magnetic flux utilizing the coil. The Indusboard, wi-fi energy switch coil, wi-fi charger module, and an e-ink show are utilized.

Everytime you wish to replace the show, merely place it on any wi-fi charger or charging module. The board receives energy by harvesting the power emitted from the charger’s coil, and the show offers Wi-Fi connectivity.

The show can then be related to a smartphone or laptop computer to ship the specified textual content or picture to be proven on the display screen. As soon as the display screen is up to date, it may be faraway from the coil.

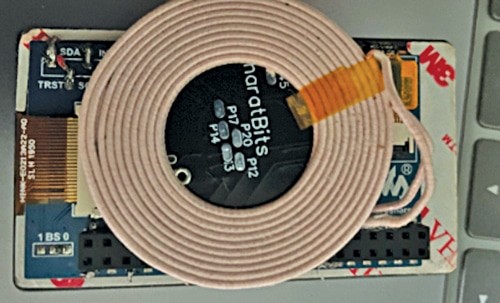

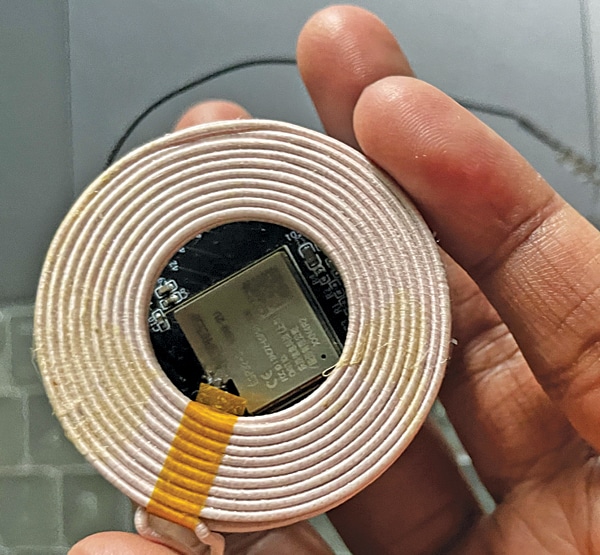

To embark on the Wi-Fi-based batteryless show, the elements listed in Desk 2 are required. Fig. 8 illustrates the wi-fi power harvesting coil with the e-link show.

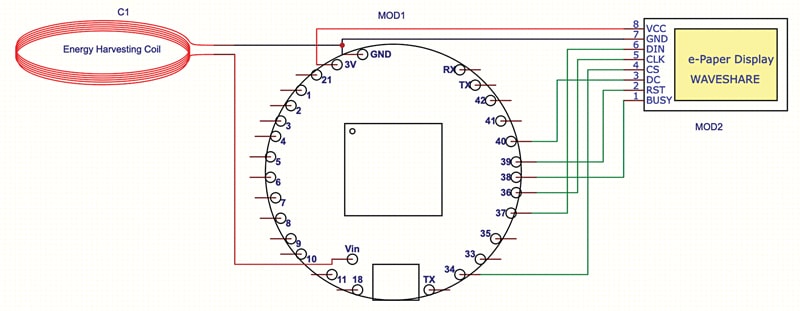

Fig. 9 reveals the best way to join the power harvesting coil, Indusboard coin (MOD1), and E-paper show (MOD2). Join the harvesting coil to the Indusboard 5V and GND pins. Because the board has a variety of voltage regulators, it converts the 3V to 9V harvested power into regulated 3.3V, which is required by the board and is displayed internally.

Now, join the e-ink show SPI pins with the board SPI pins. {Hardware} SPI pins are used right here, and the identical ought to be outlined within the code. Nevertheless, different SPI pins may be modified and outlined within the code because the board has versatile SPI; any GPIO can be utilized.

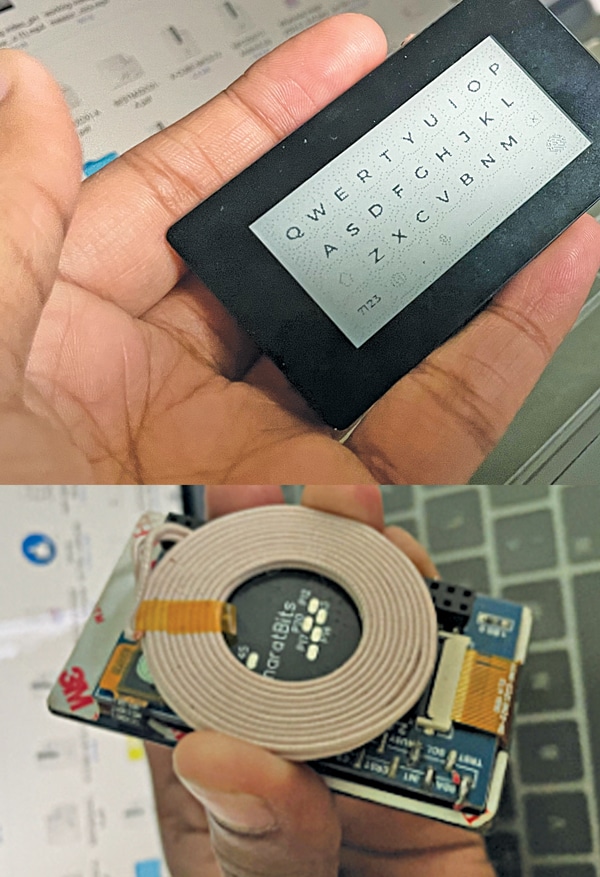

Fig. 10 shows the power harvesting coil with the Indusboard, and Fig. 11 shows the power harvesting coil with the e-ink show.

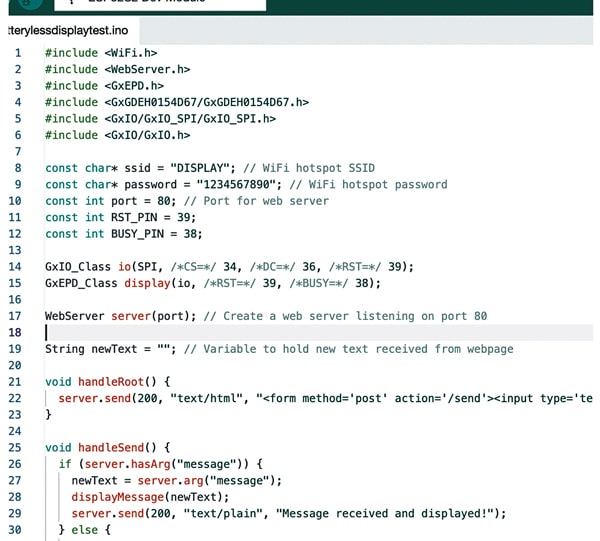

Within the supply code, outline the SPI pins as per connections, set the show hotspot identify and password, after which add the code to the Indusboard by deciding on the proper board and port within the Arduino IDE. Fig. 12 reveals a screenshot of the supply code.

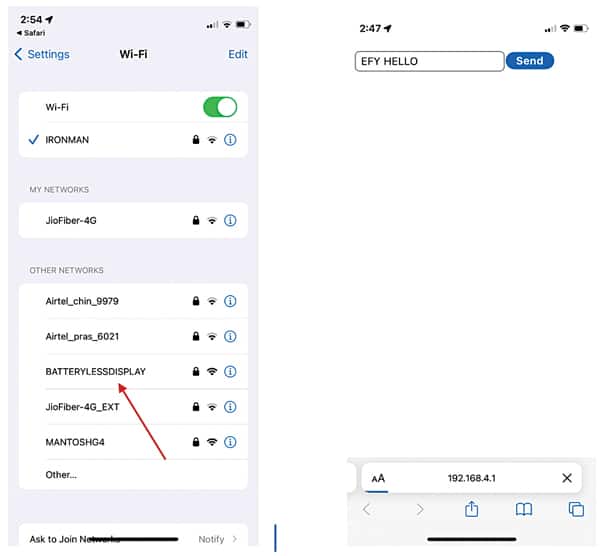

To replace the show, place the show on any wi-fi charger or powering coil after which open the cellphone. Join the cellphone with the displayed hotspot; right here, its identify is “BATERYLESSDISPLAY,” as proven in Fig. 13. Now, insert the password; by default, the password is 1234567890. Search the IP tackle within the internet browser and ship the textual content to show. Inside seconds, the show will get up to date from the harvesting coil, and the show might be prepared with the brand new display screen.
